The system supports in-process monitoring of transport vehicles loading, transportation and unloading. This ensures optimum loading and monitoring at all process stages.

Cargo traffic accounting

Functions

Optimum loading support

Monitoring

Telemetry data transmission to the monitoring server, data exchange between onboard computers of the transport vehicle and loader (excavator)

Transmission

Recording arrivals and departures to geo-fenced zones, trips and violations identification

Acquisition

Run, time of movement and stops, keeping the records of transported cargo, violations recording, reports

Accounting and analysis

Description

The vehicle is equipped with load cells on all axles.

The system monitors:

Transport vehicle arrival and departure to loading/unloading geo-fenced zones;

The time of transport vehicle staying in each zone;

And automatically determines a weight of the cargo delivered in each trip.

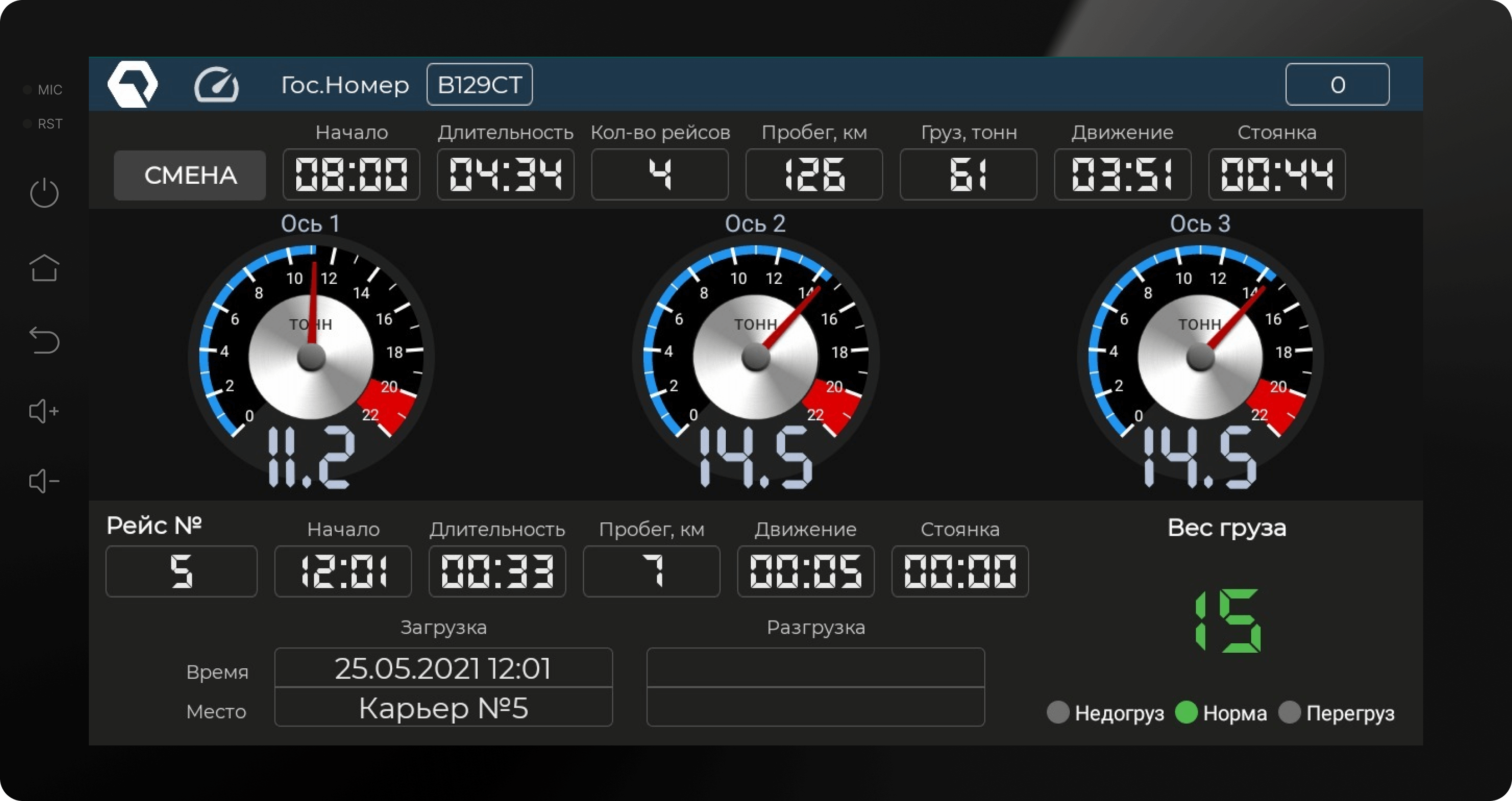

The monitoring and control unit is installed in the cabin. Excavators or loaders are also equipped with a monitoring unit displaying the value of cargo weight transmitted from the transport vehicle being loaded via a radio channel. These data allow loading the transport vehicle in an optimum way. Overloading and underloading result in improper operation and higher costs.

Advantages

Optimum loading support

Reduced operating costs

Reduced repair costs

Cargo transportation monitoring at all stages

Parameters monitoring

Load per axle

Cargo weight

Underloading/overloading

Number of trips

Loading/unloading time accounting

Travel time accounting

Downtime accounting

Loading/unloading site

Run per a shift

1

2

3

4

5

6

7

8

9

System components

“QUANTOR-5tms” hardware and software complex

Switch

“QUANTOR” server software

“QUANTOR” client software

Client software

Emergency notification

Object activity display

Plots viewing upon clicking

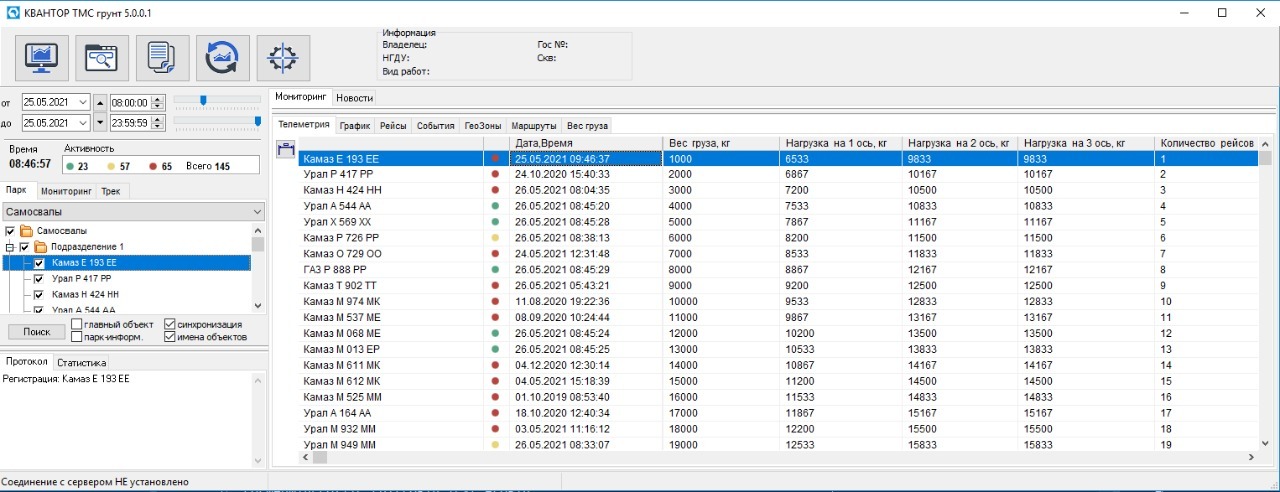

Displaying all the objects in tabular and tree view

Viewing trip events

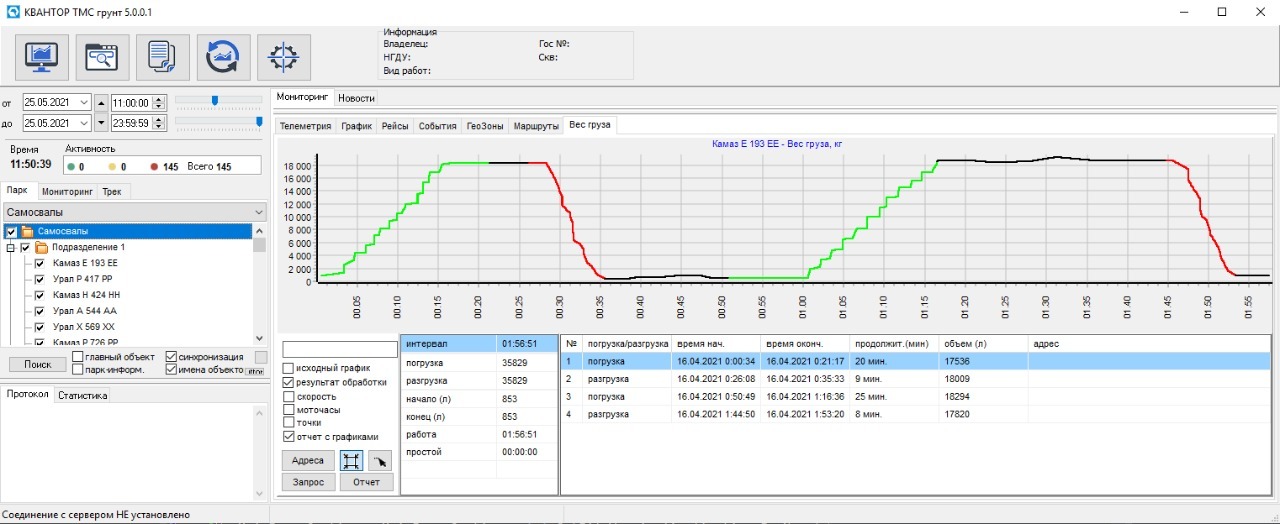

Comparing load vs speed plots

Parameters display in graphical and digital form

Functions of the complex

Cargo traffic automated monitoring

Underloading and overloading monitoring

Transport vehicle performance records (operating time, downtime)

Archives viewing in graphical and digital form

Downtime and violations statistics viewing

Excel reports downloading and printing out

1

2

3

6

5

4

Send your application
