POL delivery accounting

The hardware and software complex automatically monitors refuelling by a mobile fuel dispenser.

Functions

Automatic transmission of telemetry data to the monitoring server once the fuel dispenser gets into the GSM coverage area

Transmission

The refuelling operations are automatically registered by the system

Monitoring

Process parameters acquisition

Acquisition

The system generates reports on completed operations and violations for any requested time period

Accounting and analysis

Description

The fuel dispenser equipment package:

All recorded data are automatically saved to the onboard computer database and transmitted to the monitoring server via the GSM channel.

The system records the following parameters during refuelling:

Onboard computer powered by OS ANDROID

QR code reader

Driver's identification card reader

Fuel level, density and temperature sensors in the tank

Fuel dispensing pump RPM sensor

Switching unit

Refuelling site coordinates

Transport vehicle filled with fuel, scanning the QR code of waybill

Full name of the driver who receives fuel, identification card readout

Amount of delivered fuel

Advantages

Without qualified specialists involvement

The driver-operator performs all control operations using the touch screen

Automated data acquisition and transmission:

The system components design guarantees:

Stable operation under severe climatic conditions

Reliable operation under high vibration

Parameters monitoring

6

5

4

3

2

1

Delivery volume

Fuel dispenser geolocation

Temperature

Density

Tank volume

Tank level

System components

“QUANTOR-5tms” hardware and software complex

Switch

“QUANTOR” server software

“QUANTOR” client software

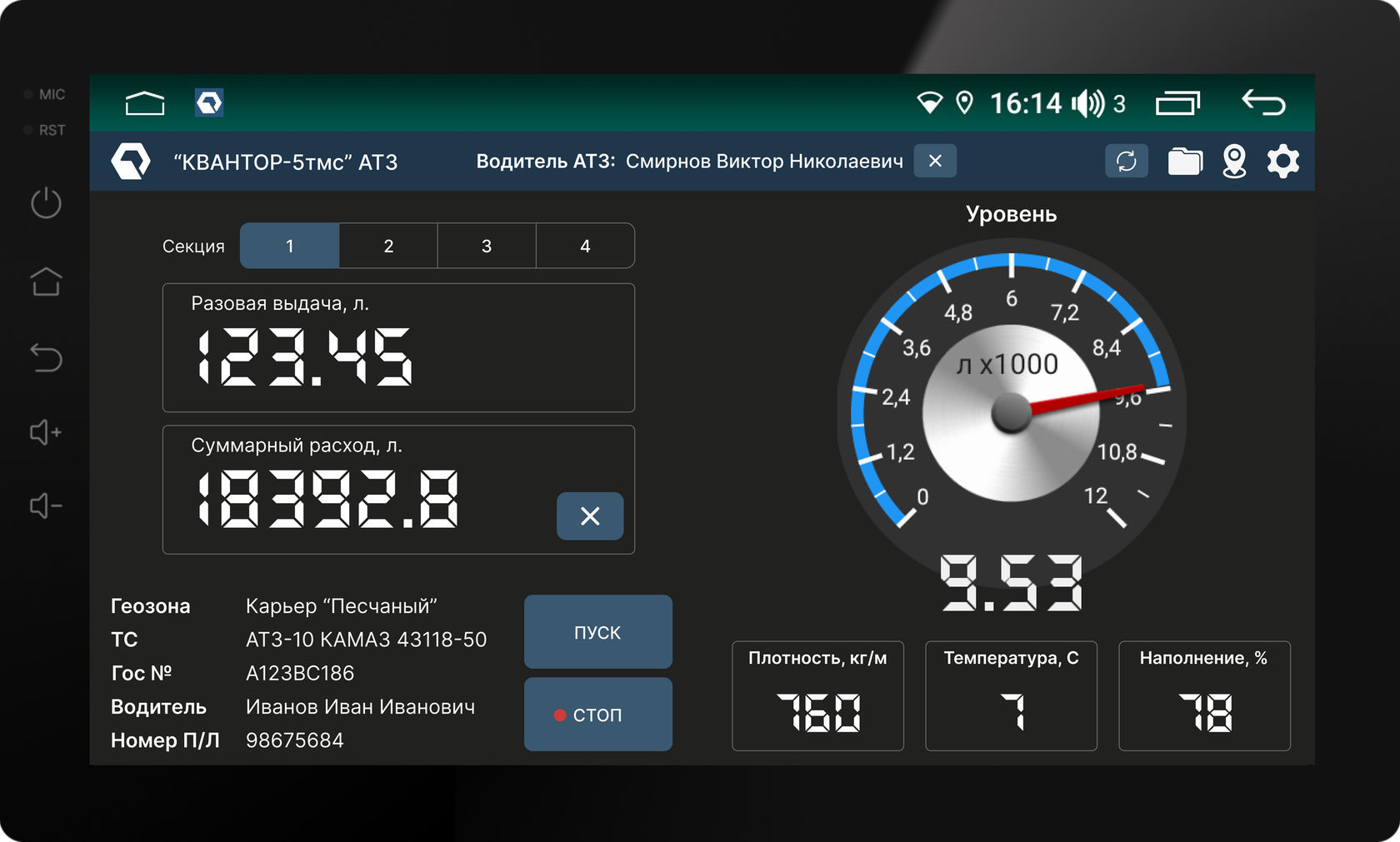

Client software

Displaying the remaining POL in the tank

POL delivery site recording

POL delivery monitoring as per traffic map and waybill

POL delivery recording

Displaying the delivered POL as a data list

Displaying the delivered POL and the remaining POL in the tank

Automatic updating the database of valid cards of drivers and materially liable persons (within the GSM coverage area)

Web-monitoring

Monitoring the location of the tanker fleet

Telemetry of the tanker fleet. Data on fuel availability by section and last issue

Archive of performed operations and graphical representation of parameter changes for the specified time interval

Tanker movement track indicating the location of fuel delivery operations

Archive of performed operations and graphical representation of parameter changes for the specified time interval

Request a tanker operation report for the specified time interval

A tool for creating geofenced. Fuel delivery operations within the specified geofenced will be marked in accordance with their names

Tanker fleet editor and Driver staff editor

Functions of the complex

POL delivery monitoring as per drivers’ cards and waybill bar codes

Monitoring the remaining POL in the fuel dispenser tank

Reporting

Automated POL delivery accounting

1

2

3

4
